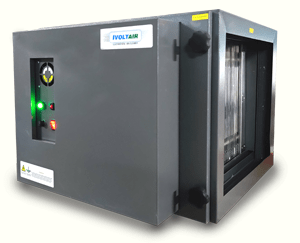

IV2500 / 1V2500UV

UV LAMP WATTAGE – 40W * 02

UV OUTPUT – 115 micro watt/sqcm

OZONE OUTPUT – 1.24 Grams/hour ( at standard conditions)

RATED LIFE – 10000 HOURS

CONTROL UNIT – DIGITAL TIMER WITH RUN HOURS DISPLAY

OPERATOR INTERFACE – UV ON BLUE LED INDICATION

DIMENSIONS (mm) – H515* W695* L720

METAL OF CONSTRUCTION – MS CRCA 1.6MM

FINISHING – 7 TANK PROCESSED, INDUSTRIAL GREY POWDER COAT

ELECTRICAL PARAMETERS – 110 – 220V AC, 50HZ, 50WATTS MAX

HIGH VOLTAGE –
DUAL OUTPUT PWM TECHNOLOGY POWER SUPPLY UNIT
SHORT CIRCUIT, ARC PROTECTION & AUTO RESET 1.0 SECOND RECOVERY TIME.
CE CERTIFIED POWER SUPPLY UNIT.

SAFETY FEATURES – DOOR SAFETY SWITCH INTEGRATED, EARTH LEAK TRIP.

AIR VOLUME – 1500-2000 CFM (1750-2340 CMH)

PARTICLE CAPTURE RANGE – 0.01MICRON METER – 10 MICRON METER

MAXIMUM EFFICIENCY –
95% DOP SINGLE PASS TEST
97% DOP DOUBLE PASS TEST
COMPLIES ANSI/ASHRAE 52.2-2017 STANDARD TEST PROCEDURE

ESP CELL TECHNOLOGY – DUAL STAGE (IONIZER & COLLECTOR)

Number of Cells – 1

MESH FILTERS – 01 OF ALUMINIUM MESH WITH SS304 FRAME

BMS CONNECTIVITY – NO VOLT RELAY FOR BMS MONITORING / ALARM INTEGRATION

OPERATOR INTERFACE –
GREEN LED – HEALTHY
RED LED – CLEAN / MAINTENANCE
POWER ON/OFF SWITCH
AC PROTECTION FUSE

INSTALLATION TYPE – CEILING SUSPENDED, FLOOR AND STAND MOUNT.

  • COMPLIES ASHRAE 50.2-2017 STANDARD FOR FILTER EFFICIENCY TEST
  • COMPLIES NFPA96 SAFETY STANDARD FOR VENTILATION APPLICATION
  • COMPLIES NFPA79 ELECTRICAL STANDARD
  • COMPLIES IS2418 STANDARD FOR UV LAMPS
  • COMPLIES IS13021 STANDARD FOR UV BALLAST
  • COMPLIES CE STANDARD FOR HIGH VOLTAGE POWER SUPPLY

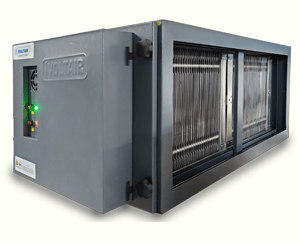

IV5000 / IV5000UV

UV LAMP WATTAGE – 75W * 02

UV OUTPUT – 230 micro watt/sqcm

OZONE OUTPUT – 2.42 Grams/hour ( at standard conditions)

RATED LIFE – 10000 HOURS

CONTROL UNIT – DIGITAL TIMER WITH RUN HOURS DISPLAY

OPERATOR INTERFACE – UV ON BLUE LED INDICATION

DIMENSIONS (mm) – H515*W695*L1280

METAL OF CONSTRUCTION – MS CRCA 1.6MM

FINISHING – 7 TANK PROCESSED, INDUSTRIAL GREY POWDER COAT

ELECTRICAL PARAMETERS – 110 – 220V AC, 50HZ, 100WATTS MAX

HIGH VOLTAGE –

DUAL OUTPUT PWM TECHNOLOGY POWER SUPPLY UNIT

SHORT CIRCUIT, ARC PROTECTION & AUTO RESET 1.0 SECOND RECOVERY TIME.

CE CERTIFIED POWER SUPPLY UNIT.

SAFETY FEATURES – DOOR SAFETY SWITCH INTEGRATED, EARTH LEAK TRIP.

AIR VOLUME – 3000 – 4000 CFM (3510 – 4680 CMH)

PARTICLE CAPTURE RANGE – 0.01MICRON METER – 10 MICRON METER

MAXIMUM EFFICIENCY –

95% DOP SINGLE PASS TEST

97% DOP DOUBLE PASS TEST

COMPLIES ANSI/ASHRAE 52.2-2017 STANDARD TEST PROCEDURE

ESP CELL TECHNOLOGY – DUAL STAGE (IONIZER & COLLECTOR)

Number of Cells – 2

MESH FILTERS – 02 OF ALUMINIUM MESH WITH SS304 FRAME

BMS CONNECTIVITY – NO VOLT RELAY FOR BMS MONITORING / ALARM INTEGRATION

OPERATOR INTERFACE –

GREEN LED – HEALTHY

RED LED – CLEAN / MAINTENANCE

POWER ON/OFF SWITCH

AC PROTECTION FUSE

INSTALLATION TYPE – CEILING SUSPENDED, FLOOR AND STAND MOUNT.

  • COMPLIES ASHRAE 50.2-2017 STANDARD FOR FILTER EFFICIENCY TEST
  • COMPLIES NFPA96 SAFETY STANDARD FOR VENTILATION APPLICATION
  • COMPLIES NFPA79 ELECTRICAL STANDARD
  • COMPLIES IS2418 STANDARD FOR UV LAMPS
  • COMPLIES IS13021 STANDARD FOR UV BALLAST
  • COMPLIES CE STANDARD FOR HIGH VOLTAGE POWER SUPPLY

IV7600 / IV7600UV

UV LAMP WATTAGE – 130W * 02

UV OUTPUT – 420 micro watt/sqcm

OZONE OUTPUT – 4.2 Grams/hour ( at standard conditions)

RATED LIFE – 10000 HOURS

CONTROL UNIT – DIGITAL TIMER WITH RUN HOURS DISPLAY

OPERATOR INTERFACE – UV ON BLUE LED INDICATION

DIMENSIONS (mm) – H515*W695*L1850

METAL OF CONSTRUCTION – MMS CRCA 1.6MM

FINISHING – 7 TANK PROCESSED, INDUSTRIAL GREY POWDER COAT

ELECTRICAL PARAMETERS – 110 – 220V AC, 50HZ, 150WATTS MAX

HIGH VOLTAGE –

DUAL OUTPUT PWM TECHNOLOGY POWER SUPPLY UNIT

SHORT CIRCUIT, ARC PROTECTION & AUTO RESET 1.0 SECOND RECOVERY TIME.

CE CERTIFIED POWER SUPPLY UNIT.

SAFETY FEATURES – DOOR SAFETY SWITCH INTEGRATED, EARTH LEAK TRIP.

AIR VOLUME – 4500 CFM – 6000 CFM (5260 – 7020 CMH)

PARTICLE CAPTURE RANGE – 0.01 MICRON METER – 10 MICRON METER

MAXIMUM EFFICIENCY –

95% DOP SINGLE PASS TEST

97% DOP DOUBLE PASS TEST

COMPLIES ANSI/ASHRAE 52.2-2017 STANDARD TEST PROCEDURE

ESP CELL TECHNOLOGY – DUAL STAGE (IONIZER & COLLECTOR)

Number of Cells – 3

MESH FILTERS – 03 OF ALUMINIUM MESH WITH SS304 FRAME

BMS CONNECTIVITY – NO VOLT RELAY FOR BMS MONITORING / ALARM INTEGRATION

OPERATOR INTERFACE –

GREEN LED – HEALTHY

RED LED – CLEAN / MAINTENANCE

POWER ON/OFF SWITCH

AC PROTECTION FUSE

INSTALLATION TYPE – CEILING SUSPENDED, FLOOR AND STAND MOUNT.

  • COMPLIES ASHRAE 50.2-2017 STANDARD FOR FILTER EFFICIENCY TEST
  • COMPLIES NFPA96 SAFETY STANDARD FOR VENTILATION APPLICATION
  • COMPLIES NFPA79 ELECTRICAL STANDARD
  • COMPLIES IS2418 STANDARD FOR UV LAMPS
  • COMPLIES IS13021 STANDARD FOR UV BALLAST
  • COMPLIES CE STANDARD FOR HIGH VOLTAGE POWER SUPPLY

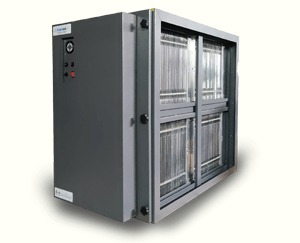

IV10200 / IV10200UV

UV LAMP WATTAGE – 130W * 04

UV OUTPUT – 420 micro watt/sqcm

OZONE OUTPUT – 8.4 Grams/hour ( at standard conditions)

RATED LIFE – 10000 HOURS

CONTROL UNIT – DIGITAL TIMER WITH RUN HOURS DISPLAY

OPERATOR INTERFACE – UV ON BLUE LED INDICATION

DIMENSIONS (mm) – H515*W695*L2410

METAL OF CONSTRUCTION – MS CRCA 1.6MM

FINISHING – 7 TANK PROCESSED,INDUSTRIAL GREY POWDER COAT

ELECTRICAL PARAMETERS – 110 – 220V AC, 50HZ, 200WATTS MAX

HIGH VOLTAGE –

DUAL OUTPUT PWM TECHNOLOGY POWER SUPPLY UNIT.

SHORT CIRCUIT, ARC PROTECTION & AUTO RESET 1.0 SECOND RECOVERY TIME.

CE CERTIFIED POWER SUPPLY UNIT.

SAFETY FEATURES – DOOR SAFETY SWITCH INTEGRATED, EARTH LEAK TRIP.

AIR VOLUME – 6000 CFM – 8000 CFM (7020 CHM – 9360 CMH)

PARTICLE CAPTURE RANGE – 0.01 MICRON METER – 10 MICRON METER

MAXIMUM EFFICIENCY –

95% DOP SINGLE PASS TEST

97% DOP DOUBLE PASS TEST

COMPLIES ANSI/ASHRAE 52.2-2017 STANDARD TEST PROCEDURE

ESP CELL TECHNOLOGY – DUAL STAGE (IONIZER & COLLECTOR)

Number of Cells – 4

MESH FILTERS – 04 OF ALUMINIUM MESH WITH SS304 FRAME

BMS CONNECTIVITY – NO VOLT RELAY FOR BMS MONITORING / ALARM INTEGRATION

OPERATOR INTERFACE –

GREEN LED – HEALTHY

RED LED – CLEAN / MAINTENANCE

POWER ON/OFF SWITCH

AC PROTECTION FUSE

INSTALLATION TYPE – CEILING SUSPENDED, FLOOR AND STAND MOUNT.

  • COMPLIES ASHRAE 50.2-2017 STANDARD FOR FILTER EFFICIENCY TEST
  • COMPLIES NFPA96 SAFETY STANDARD FOR VENTILATION APPLICATION
  • COMPLIES NFPA79 ELECTRICAL STANDARD
  • COMPLIES IS2418 STANDARD FOR UV LAMPS
  • COMPLIES IS13021 STANDARD FOR UV BALLAST
  • COMPLIES CE STANDARD FOR HIGH VOLTAGE POWER SUPPLY

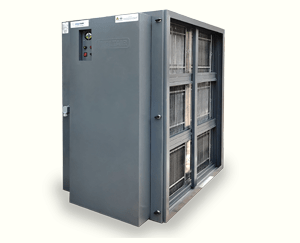

IV15200 / IV15200UV

UV LAMP WATTAGE – 130W * 04

UV OUTPUT – 660 micro watt/sqcm

OZONE OUTPUT – 12.6 Grams/hour (at standard conditions)

RATED LIFE – 10000 HOURS

CONTROL UNIT – DIGITAL TIMER WITH RUN HOURS DISPLAY

OPERATOR INTERFACE – UV ON BLUE LED INDICATION

DIMENSIONS (mm) – H1030*696*L1865

METAL OF CONSTRUCTION – MS CRCA 1.6MM

FINISHING – 7 tank processed,industrial grey powder coat

ELECTRICAL PARAMETERS – 110 – 220V AC, 50HZ, 200 WATTS MAX

HIGH VOLTAGE –

Dual output PWM technology power supply unit short circuit, arc protection and
auto reset 1.0 Second recovery time CE certified power supply unit

SHORT CIRCUIT, ARC PROTECTION & AUTO RESET 1.0 SECOND RECOVERY TIME.

CE CERTIFIED POWER SUPPLY UNIT.

SAFETY FEATURES – DOOR SAFETY SWITCH INTEGRATED, EARTH LEAK TRIP.

AIR VOLUME – 9000 CFM – 13500 CFM MAX (15300 CMH – 22950 CMH MAX)

PARTICLE CAPTURE RANGE – 0.1 Micron Meter – 10 Micron Meter

MAXIMUM EFFICIENCY –

95% DOP single pass test
97% DOP double pass test complies ANSI / ASHRAE 52.2-2017 standard test procedure

COMPLIES ANSI/ASHRAE 52.2-2017 STANDARD TEST PROCEDURE

ESP CELL TECHNOLOGY – DUAL STAGE (IONIZER & COLLECTOR)

Number of Cells – 6

MESH FILTERS – 06 of aluminum mesh with SS304 frame

BMS CONNECTIVITY – NO VOLT RELAY FOR BMS MONITORING / ALARM INTEGRATION

OPERATOR INTERFACE –

GREEN LED – HEALTHY

RED LED – CLEAN / MAINTENANCE

POWER ON/OFF SWITCH

AC PROTECTION FUSE

INSTALLATION TYPE – CEILING SUSPENDED, FLOOR AND STAND MOUNT.

  • COMPLIES ASHRAE 50.2-2017 STANDARD FOR FILTER EFFICIENCY TEST
  • COMPLIES NFPA96 SAFETY STANDARD FOR VENTILATION APPLICATION
  • COMPLIES NFPA79 ELECTRICAL STANDARD
  • COMPLIES IS2418 STANDARD FOR UV LAMPS
  • COMPLIES IS13021 STANDARD FOR UV BALLAST
  • COMPLIES CE STANDARD FOR HIGH VOLTAGE POWER SUPPLY

ECOLOGY UNIT

UV LAMP WATTAGE – 40W – 130 WATTS

OZONE OUTPUT – 1.26 – 8.4 Grams/hour ( at standard conditions)

RATED LIFE – 10000 HOURS

CONTROL UNIT – DIGITAL TIMER WITH RUN HOURS DISPLAY

OPERATOR INTERFACE – UV ON BLUE LED INDICATION

DIMENSIONS (mm) – CUSTOM DESIGNED ACCORDING TO THE DEMAND

METAL OF CONSTRUCTION – MS CRCA 1.6MM

FINISHING – 7 TANK PROCESSED

ELECTRICAL PARAMETERS – 3PH NEUTRAL SYSTEM , 0.75KW – 7.5KW POWER

AIR VOLUME – 1500 CFM – 6500 CFM MAX (2550 CHM – 11050CMH MAX)

ESP CAPACITY –

1500CFM – 6000 CFM ( AS PER DEMAND) .

DUAL VOLTAGE PWM TECH POWER SUPPLY, SHORT CIRCUIT, ARC PROTECTION & AUTO RESET 1.0 SECOND RECOVERY TIME .

CE CERTIFIED POWER SUPPLY UNIT .

SAFETY FEATURES – DOOR SAFETY SWITCH, PRESSURE SWITCH INTEGRATED .

STATIC PRESSURE – 10MM WG FOR CLEAN UNIT, 15MM WG FOR CHOCKED UNIT

Particle Capture Range – 0.01 MICRON METER – 10 MICRON METER

MAXIMUM EFFICIENCY –

96% DOP SINGLE PASS TEST

99% DOP DOUBLE PASS TEST

COMPLIES ANSI/ASHRAE 52.2-2017 STANDARD TEST PROCEDURE

ESP CELL TECHNOLOGY – DUAL STAGE (IONIZER & COLLECTOR)

Number of Cells – VARIES FROM ACTUAL REQUIREMENT

Bag Filters – 1500CFM – 6000 CFM ( AS PER REQUIREMENT)

BMS CONNECTIVITY – MODBUS RS485 PROTOCOL, MONITOR/CONTROL

CONTROL UNIT –

CONTROL PANEL

FAN CONTROL OPERATIONS

ESP HEALTH MONITOR

PRESSURE LOSS MONITOR FOR BAG FILTER MAINTENANCE

INSTALLATION TYPE – WALL & FRAME MOUNT
